Selective Soldering System
Location: Home -> Hot Products -> products -> SMT wave soldering machine -> Selective Soldering System -> Mini Selective Soldering Machine

Features:
1. Standard spraying, preheating and welding units can complete the entire welding process in a small machine space
2. The rotary track design allows the operator to complete the loading and unloading of the PCB on the same side of the machine
3. Small footprint, much shorter than standard SUNFLOW system machines
4. Real-time monitoring of welding process, process record


Mini Selective Soldering 0


Parameter Name Specification

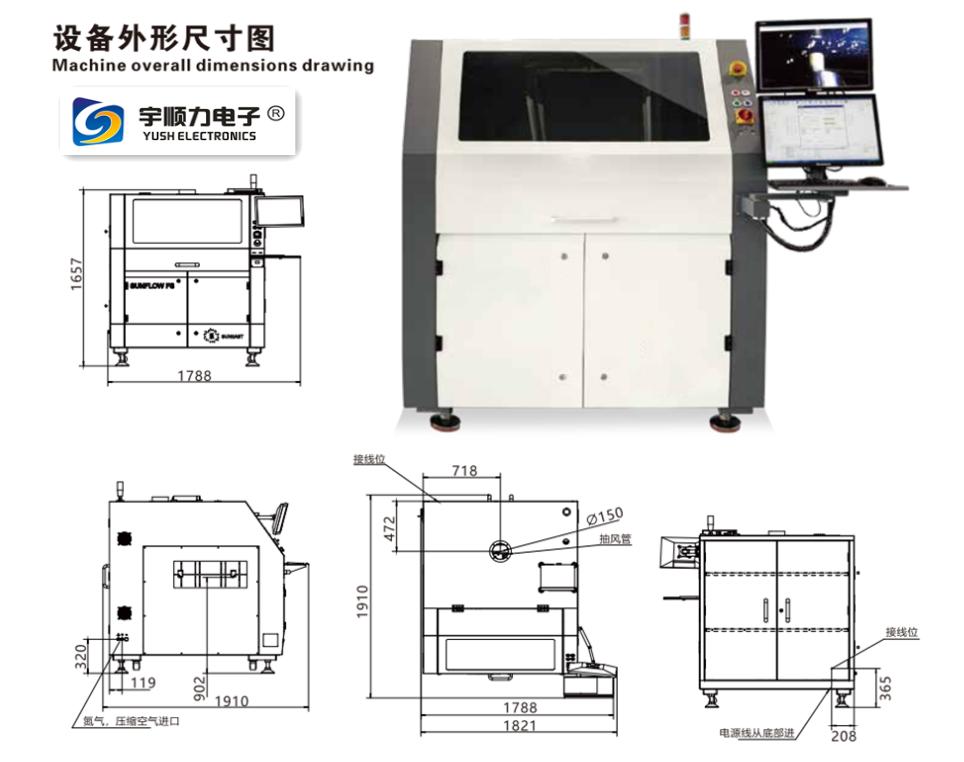

Body parameters Device Dimensions 1435(L)*1800(W)*1670(H)
Equipment weight (KG) 1050
PCB top clearance 120
PCB bottom clearance 60
PCB process side ≥3
Conveyor belt height above ground 900±20
PCB transfer speed 0.2-10
PCB weight (KG) ≤5
PCB thickness (including fixture) 1-6
Adjustable range of conveyor belt 50-450
Conveyor belt width adjustment method Electric
PCB transfer direction Left to right
Air intake pressure 0.6
Nitrogen supply Provided by customer
Nitrogen inlet pressure 0.6
Nitrogen consumption 1.5
Required nitrogen purity >99.999
Voltage 380
Frequency 50/60
Maximum power consumption <12
Maximum current <25
Machine noise <65
Communication Interface SMEMA
Welding system Welding X-axis maximum travel 510
Maximum travel of welding Y axis 450
Welding Z axis maximum travel 60
Minimum Nozzle Outer Diameter 5.5
Nozzle inner diameter 2.5-10
Maximum crest height 5
Tin furnace capacity Approx.13kg(Sn63Pb)/ Approx.12kg(lead-free)
Maximum Soldering Temperature 330
Tin furnace heating power 1.15
Preheating system Preheat temperature range <200
Heating power 6
Heating method Hot air
Spray system Spray X-axis maximum travel 510
Maximum stroke of spray Y axis 450
Spray height 60
Positioning speed 200
Flux tank capacity 2


Standard machine basic structure module
1. Spray module
2. Preheating the module
3. Welding module (standard machine with inner diameter 6mm nozzle)
4. Transmission system
Working principle: After the pre-programmed program of the spray head controls the PCB board to move to the designated position, only the parts that need to be soldered are sprayed with flux. After spraying and preheating, the electromagnetic pump platform drives the electromagnetic pump to move to the required position according to the preset program. Welded parts, and then welded.


Fast and convenient programming system


Mini Selective Soldering 1


Stable and high-quality welding----welding module
Features and advantages:
1. The crest is stable
2. The nozzle is easy to remove and replace
3. High quality nozzle (can be used for 3 months)
4. Small footprint
5. Energy saving
6. Fast line change


Mini Selective Soldering 2


Using an electromagnetic pump, compared with a mechanical pump, the electromagnetic pump has stable wave peaks during operation, no mechanical wear of the movement, and produces very little waste. In addition, the welding module adopts a high-precision motion system to ensure the accuracy of the welding process. , The colleague cooperates with the special process, which can greatly eliminate the phenomenon of tin connection. In terms of user experience, it provides welding monitoring cameras and automatic detection of wave height, which greatly improves the user experience.


Mini Selective Soldering 3


Transmission system---transmission track


Mini Selective Soldering 4


The transmission system adopts roller conveying, which increases the welding space and is more conducive to the welding of components close to the edge of the board.

selective soldering process
Welding process:
1. Transfer the PCB board to the designated location
2. Selective spraying, preheating and soldering of the PCB according to the set procedure
3. PCB outgoing


Mini Selective Soldering 5


High precision spray---spray module
The standard machine adopts precision drop nozzle imported from Germany, the diameter of the nozzle is 130μm, which can evenly spray the flux on the required welding area. The minimum spray area is 3mm, saving at least 90% flux compared to traditional spray. According to user needs, in the case of low precision of spray area size, spray nozzles are also provided to make the spray process faster.
All module movements are driven by private clothes and ball screws, the movement process is smooth and stable, and the repeatability can reach 0.05mm.


Basic structure module


Mini Selective Soldering 6


Using an electromagnetic pump, compared with a mechanical pump, the electromagnetic pump has stable wave peaks during operation, no mechanical wear of the movement, and produces very little waste. In addition, the welding module adopts a high-precision motion system to ensure the accuracy of the welding process. , The colleague cooperates with the special process, which can greatly eliminate the phenomenon of tin connection. In terms of user experience, it provides welding monitoring cameras and automatic detection of wave height, which greatly improves the user experience.
