Product introduction
1. Mainly applicable to automotive electronics, mobile phones, digital cameras, 3G network cards and other industries of small board, multi-link board, shaped board cutting.
2. The whole machine adopts servo module, vision, IPC combined working mode, suitable for high precision, high efficiency of the board operation.
3. Can cut straight, L, U, round, arc and other special-shaped PCB board.
4. The main shaft adopts German high-speed spindle, equipped with automatic milling cutter, automatic cutter breaking (cutting off) detection system, self-check function after cutting and automatic edge searching programming function.
5. Upper/lower dust collection mode; The upper dust collection adopts floating brush to follow the suction to ensure better dust removal effect after cutting.
6. Milling cutter adopts right-handed milling cutter, which can be set according to PCBA thickness, saving the cost of milling cutter usage.
7. Programming method adopts the whole board CCD camera to take photos and scan programming, reducing the programming and adjustment time, to ensure the quality of the board; Gerber import programming and off-line programming can also be used.
8. The operating system adopts Win10 legitimate operating system and PC software control program; Software independent research and development, can be free for life unlimited upgrade.
9. Open MES system connection port and BAR CODE scanning port function free of charge.
10. There are two kinds of plate discharging modes: pallet discharging and belt discharging. Can be connected to the pendulum machine.

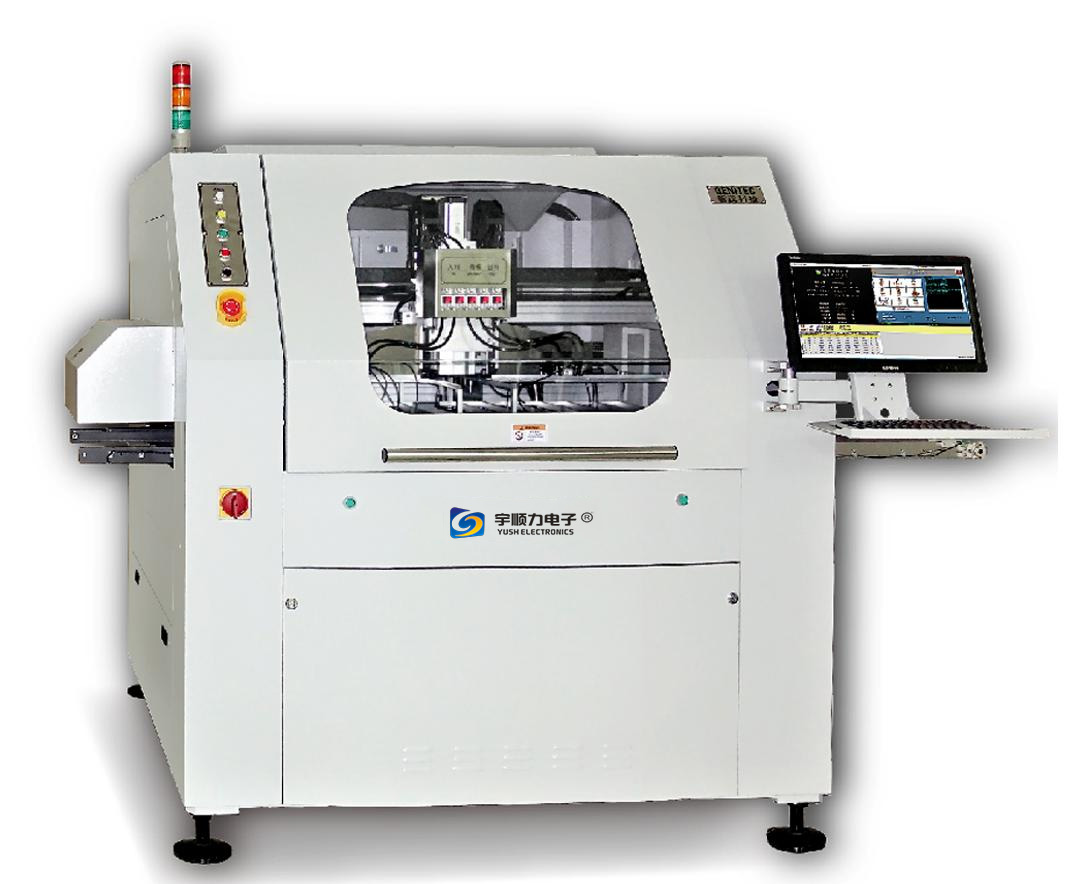

On-line depaneling Machine YSL360AT 0

Machine Application

In- Line Vision- Aided Automatic PCB Separator YS330AT

Product connection diagram

On-line depaneling Machine YSL360AT 2

Product dimensions

On-line depaneling Machine YSL360AT 3

Optional function

Number Name Function
1 Bar code camera Used to read the bar code on the PCB
2 Laser height module Used to check whether the PCB is properly placed
3 CCD Used to read the bar code on the PCB
4 Anti-riot dust collector Prevent the collected dust from exploding
5 Fingerprint identification module Operating log-in permits for different personnel
6 Tool diameter test module CCD camera is used to detect the diameter of the milling cutter to prevent the wrong use

Product performance characteristics

On-line depaneling Machine YSL360AT 4

• Equipped with automatic tool changing mechanism to avoid industrial injury and misoperation.
• It has the function of automatic cutting and cutting detection.
• Z-axis has automatic compensation setting to automatically adjust the depth of the milling cutter

On-line depaneling Machine YSL360AT 5

SYCOTEC (Germany)/KAVOTEC (Taiwan) high speed spindle
• Rotational speed:60000-80000rpm (max)
• Power:500W (max)
•Accuracy:lum

On-line depaneling Machine YSL360AT 6


Entry track

• With automatic width adjustment function.
• With automatic clamping and limiting device.
• Connect to front-end devices to deliver 900±50mmo height
• Board edge W5min.



On-line depaneling Machine YSL360AT 7



Split-plate platform

• Single working platform.
• Automatic cover plate when in place.
• Use servo modules for load shifting and positioning.
• The suckers can be replaced modulatively.



On-line depaneling Machine YSL360AT 8



Take and release module
• Put the PCB into the sub-board platform by adsorption on the left side, and put the divided PCB into the back belt line by absorption on the right side.
• Different types of sucker modules can be made for quick modular replacement.
• Optional jaw type taking and discharging materials according to customer needs.


On-line depaneling Machine YSL360AT 9

Discharge platform
• The segmented PCB is connected to the rear assembly line by belt transfer.
• Can be changed to pallet type according to customer requirements, convenient to connect with the back end of the plate receiver, testing machine, tin furnace and other equipment.

On-line depaneling Machine YSL360AT 10

Counterpoint system
• CCD is used to automatically identify mark points for alignment, to ensure the cutting path and ensure the cutting accuracy.
• It can recognize the whole board mark or single board mark.

On-line depaneling Machine YSL360AT 11

Programming system
• Programming mode mainly adopts the quick programming after the whole board scanning, and can also quickly modify the cutting path.
• You can edit offline programs through AUTO CAD or DXF files, effectively saving online programming time

On-line depaneling Machine YSL360AT 12

Suitable for PCBA segmentation of any shape

On-line depaneling Machine YSL360AT 13

Milling cutter specification
1. Right-handed milling cutter, milling cutter rotation direction and draft direction is consistent.
2. Carbon alloy milling cutter head:
a. Total length: 38.2 ± 0.30mm;
b. Handle diameter: 3.165 mm
c. Length of cutting section: 8± 0.50mm
d. Cutting section diameter: 0.8-3.0mm
Floating brush
Optimize the vacuuming module to improve the vacuum negative pressure and ensure the vacuuming effect

On-line depaneling Machine YSL360AT 14

Dust collector
• The upper and lower vacuuming modes are optional, with the standard 4.5KW (6HP) upper dust collection and 3.75KW(5HP) lower dust collection.
• Used to collect dust and debris in the PCB cutting process.
• Internal use of high horsepower motor and high efficiency fan, high dust collection efficiency, and can minimize the dust adhesion in the cutting product.

On-line depaneling Machine YSL360AT 15

MES system
• Open MES docking port and BAR CODE scanning port functions free of charge for life.
• To provide product traceability, equipment status, production data collection management in the central information personnel.

On-line depaneling Machine YSL360AT 16

Operating interface
• Simple operation interface, 9 steps covering all operation processes.
• Clear classification of functional projects, simple setting of milling cutter/fixture parameters
• Provide four levels of permission, and set operation permission according to the job position.
• The "History window" can display and query operation records
Operation records and machine alarm records shall be kept by day. Operator, technician operations can be traced.

Applicable product specification

Lead plane
XYZ shaft drive mode Panasonic AC servo motor
Number of stored knives 8PCS
Program teaching mode CCD color image intuitive instruction input
Safety protection Safety grating protection
Cutter detection Standard arrangement
Program backup USB
Operating system Windows 10
Control mode Precision multi-axis control system
Operating interface Monitor + keyboard + mouse
PCB loading/unloading Automatic plate placing and taking
Power supply specification AC220V 50/60HZ 4KW (single-phase)
Air source specification 0.5Mpa
Overall dimension 2284mm(L)X1605mm(D)X1716mm(H)
Weight 930KG



Dust collector
Standard model YS300L (Dust collection) YS200L (Next dust collection)
Power supply specification AC380V 50/60HZ AC380V 50/60HZ
Output power 4. 5KW (6HP) 3. 7KW (5HP)
Inlet wind speed 29m/s 62m/s
Vacuum value 310mbar 260mbar
Inlet/outlet diameter D50mm/D125mm D150mm/D200mm
Filter bag material/grade/size Polyester/HEPA/W610*L750mm Polyester/PTFE/D120*L600mm
Bucket capacity D400*H600mm W540*D600*H140mm
Motor protection class IP54 IP54
noise <78dp <79dp
weight 130kg 220kg
Overall dimension 1050mm(W)*530mm(D)*1200mm(H) 888mm(W)*738mm(D)*1772mm(H)
