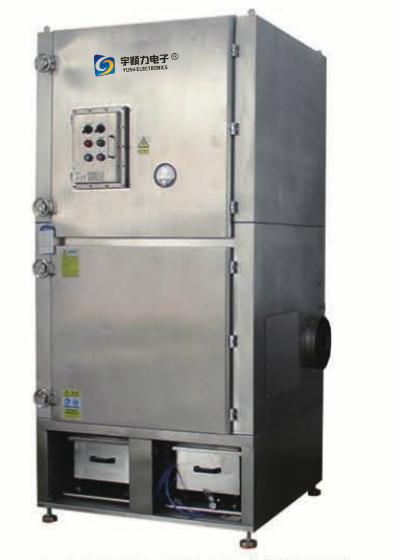

Auto Nozzle Cleaning Machine
Location: Home -> Hot Products -> products -> PCB Cleaning Machine -> Auto Nozzle Cleaning Machine -> Series with Single Door Panels(Explosion-proof device)

Scope of application:
welding robot workstation smoke and dust control, laser cutting, drilling, sandblasting, powder spraying, engraving, grinding and polishing, stirring, powder feeding, powder bagging, powder sieving, laboratories, etc. It can be placed indoors or outdoors to collect and control floating, suspended dust and smoke, and can be centralized for single-post or multi-post dust removal.

Series with Single Door Panels(Explosion-proof device) 0


Main feature:
1. The explosion-proof device of the whole machine is suitable for places with explosion-proof requirements.
2. Explosion-proof centrifugal fan, large air volume, low noise and stable performance.
3. Equipped with 15 electrostatic conductive filter cartridges, the filtration area is 72 square meters.
4. The pulse cleaning control system can set the pulse cleaning interval according to the working conditions.
5. Stainless steel material, explosion-proof electrical appliances, explosion-proof electric box, flameless discharge/explosive disc, improve product safety.
6. Differential pressure gauge can check the pressure when the machine is running.
7. The filter wind speed reduction design inside the machine, dust can be formed inside the machine after dust inhalation.

Series with Single Door Panels(Explosion-proof device) 1

Explosion-proof motors  /    15 static conductive filter cartridges 72 square meters

Series with Single Door Panels(Explosion-proof device) 2

Buster/Flameless Vent                                Explosion-proof electrical box


Technical Data Unit YSL-550E YSL-750E
Power Kw 5.5 7.5
Voltage V-Hz 380-50/60 380-50/60
Container capacity L 50 50
Filter area 72 72
Filtering accuracy μm 0.1-0.3 0.1-0.3
Qty of filters PC 15 15
Airflow m³/h 4000-5700 5000-7000
Vacuum Kpa 2.9-2.1 3.3-2.5
Noise level dB 72 74
Inlet diameter mm 150/500 150/500
Cable length m 8 8
Product size mm 1250*1280*2600 1250*1280*2600
Filter cleaning method - Pulse cleaning Pulse cleaning
Explosion proof or not - YES YES
Switch control mode - Local control
